What Is a Servo Voltage Stabilizer and How to Choose the Right One for Your Industry Application?
In today’s power-unreliable environment, voltage fluctuations can damage expensive industrial equipment, disrupt production, and cause significant financial losses. The servo voltage stabilizer is the most reliable solution for maintaining constant output voltage in industrial settings. Whether you run a manufacturing plant, data center, hospital, or commercial establishment, choosing the right industrial servo stabilizer is critical for operational continuity and equipment longevity.
What Is a Servo Voltage Stabilizer?
A servo voltage stabilizer is an automatic voltage regulation device that uses a servo motor to maintain a constant output voltage despite variations in input voltage or load conditions. Unlike relay-based stabilizers, servo stabilizers provide smooth, continuous voltage correction without sudden jumps.
How Servo Stabilizers Work
The stabilizer contains a variable transformer with a carbon brush connected to a servo motor. When input voltage fluctuates:
1
Voltage sensing circuit detects the change
2
Control board calculates the correction needed
3
Servo motor rotates the brush to adjust transformer output
4
Output voltage returns to the set value (typically 220V/415V ±1%)
This closed-loop system ensures precise voltage regulation with response times of 20-40 milliseconds.
Why Servo Voltage Stabilizers Are Essential for Industry
Industrial servo stabilizers offer superior performance compared to other stabilizer types:
Advantages Over Relay-Based Stabilizers
| Feature | Servo Stabilizer | Relay Stabilizer |
|---|---|---|
| Voltage Accuracy | ±1% to ±2% | ±5% to ±10% |
| Response Time | 20–40 ms | 10–20 ms (step correction) |
| Voltage Correction | Continuous / Smooth | Stepwise / Jerky |
| Load Handling | High (up to 2000 kVA) | Low (up to 50 kVA) |
| Lifespan | 15–20 years | 5–7 years |
| Best For | Industrial motors, heavy machinery | Small commercial use |
Key Applications
- CNC machines & robotics – Maintains precision in automated systems
- Heavy manufacturing – Protects large motors from burnout
- Printing presses – Ensures consistent speed and quality
- Textile machines – Prevents fabric defects from voltage swings
- Packaging machinery – Avoids production stoppages
- Medical equipment – MRI, CT scanners need stable voltage
- Data centers – Protects servers and networking equipment
How to Choose the Right Servo Voltage Stabilizer for Your Industry Application
Selecting the correct industrial servo stabilizer requires evaluating these 7 key factors:
1. kVA Rating (Power Capacity)
Calculate the total connected load of all equipment. Choose a servo stabilizer with 25% higher kVA rating than your actual load for safety margin and future expansion.
Formula: Total Load (kW) ÷ 0.8 (Power Factor) × 1.25 = Required kVA
2. Input Voltage Range
Determine your minimum and maximum input voltage. In India, voltage can fluctuate between 160V–280V in many areas. Select a servo stabilizer with wider input range (±25% to ±30%).
3. Output Voltage Accuracy
For precision equipment like CNC machines and medical devices, choose servo stabilizers with ±1% output accuracy. General motors can work with ±2–3% accuracy.
4. Single Phase vs. Three Phase
Ensure your servo voltage stabilizer includes:
Look for:
Calculate the total connected load of all equipment. Choose a servo stabilizer with 25% higher kVA rating than your actual load for safety margin and future expansion.
Formula: Total Load (kW) ÷ 0.8 (Power Factor) × 1.25 = Required kVA
2. Input Voltage Range
Determine your minimum and maximum input voltage. In India, voltage can fluctuate between 160V–280V in many areas. Select a servo stabilizer with wider input range (±25% to ±30%).
3. Output Voltage Accuracy
For precision equipment like CNC machines and medical devices, choose servo stabilizers with ±1% output accuracy. General motors can work with ±2–3% accuracy.
4. Single Phase vs. Three Phase
- Single Phase Servo Stabilizer – For loads up to 25 kVA (offices, small shops)
- Three Phase Servo Stabilizer – For loads above 25 kVA (factories, industries)

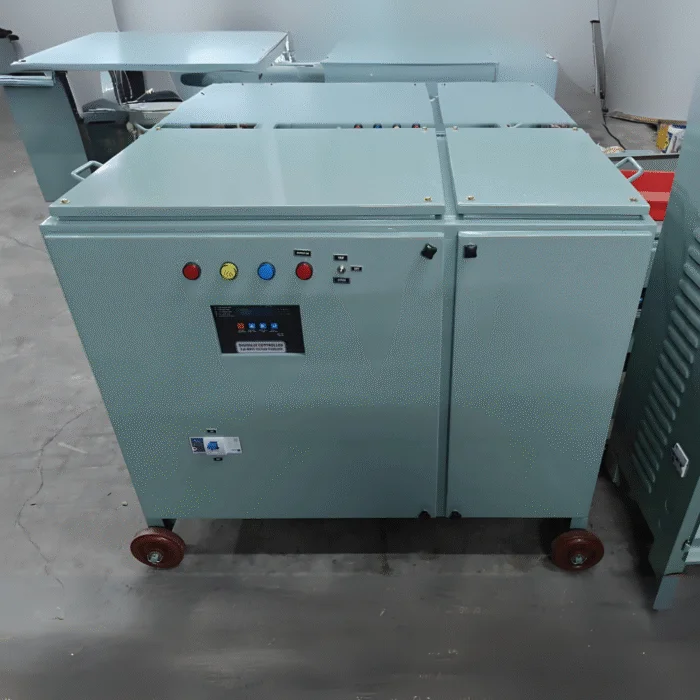

- Air-cooled (fan-based) – Lower maintenance, suitable for clean indoor environments
- Oil-cooled – Better heat dissipation for continuous 24/7 operation in harsh industrial conditions
Ensure your servo voltage stabilizer includes:
- Over-voltage and under-voltage cut-off
- Short-circuit and overload protection
- Phase failure and phase reversal protection (for 3-phase)
- Time-delay circuit for compressor/motor protection
- ISO 9001 certification
Look for:
- Copper windings (not aluminium) for better efficiency
- IP54-rated cabinet for dust and water protection
- High-quality servo motor with long bearing life
- Digital display showing input/output voltage
Top Industries Using Servo Voltage Stabilizers
| Industry | Typical kVA Range | Primary Application |
|---|---|---|
| Manufacturing | 50–500 kVA | Motors, production lines |
| Healthcare | 25–150 kVA | MRI, CT scanners, operation theaters |
| IT & Telecom | 30–200 kVA | Servers, data centers |
| Textile | 75–300 kVA | Spinning machines, looms |
| Food Processing | 50–250 kVA | Refrigeration, packaging |
| Printing | 40–150 kVA | Printing presses |
| Hospitality | 30–100 kVA | HVAC, elevators, kitchens |
Common Mistakes to Avoid When Buying Servo Stabilizers
- Underrating kVA – Always add 25% safety margin
- Ignoring input voltage range – Check actual fluctuations at your location
- Choosing aluminium windings – Always select copper for longevity
- Skipping certifications – Ensure ISO 9001 and CE compliance
- Ignoring after-sales support – Local service availability matters
Why Choose Rajdeep Industries for Servo Voltage Stabilizers?
At Rajdeep Industries, we manufacture premium industrial servo voltage stabilizers tailored to your specific application. Our products feature:
- Wide input voltage range (±25% to ±30%)
- High accuracy (±1% to ±2% output stability)
- Efficiency >97% with copper windings
- Air-cooled and oil-cooled options available
- IP54-rated dust/water-resistant cabinets
- ISO 9001 certified quality
- Custom kVA ratings (5 kVA to 300 kVA)
- OEM/ODM services for unique requirements
- Reliable after-sales support from Mumbai, Maharashtra
Visit us at www.rajdeepindustries.com to explore our range of servo voltage stabilizers and get expert consultation for your industry application.
